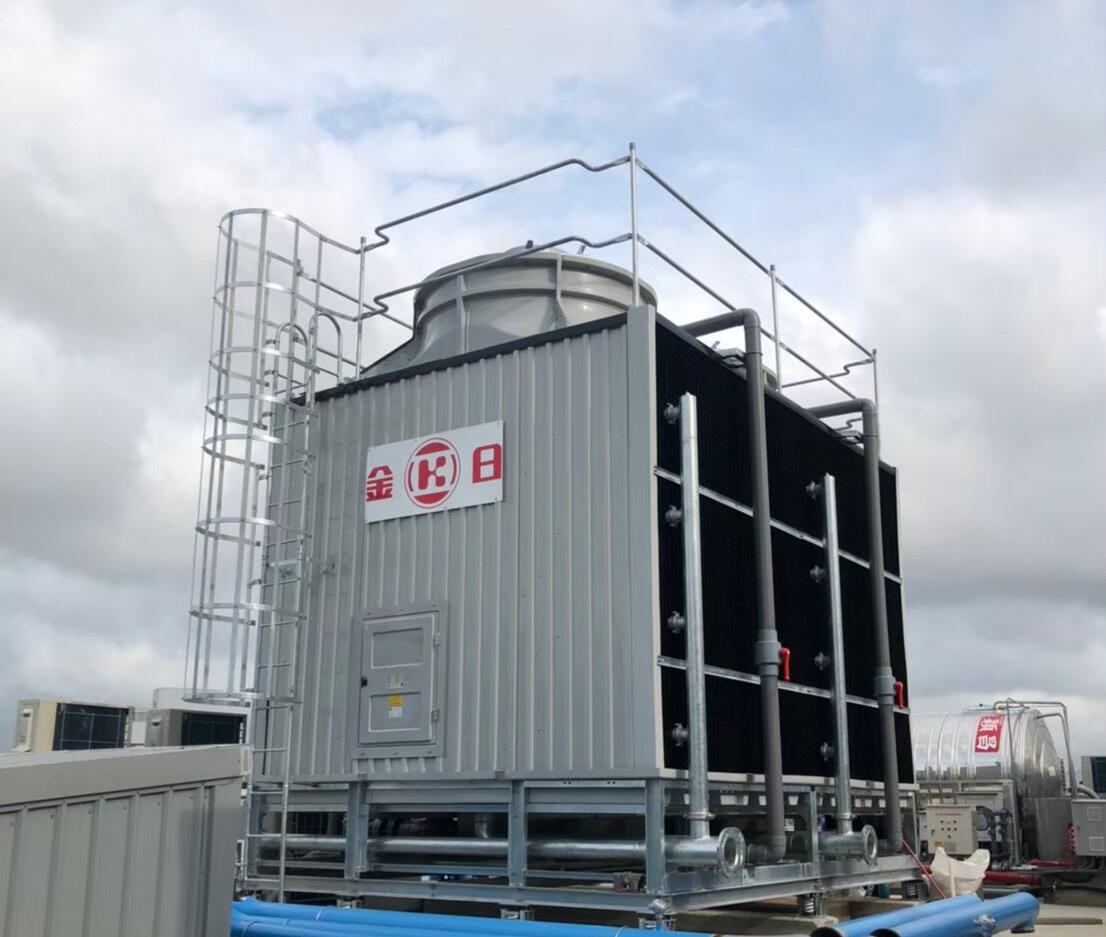

KCC Closed circuit type cooling towers, Counterflow design, Square Type, Modular Cell Configuration
KCC Closed circuit type cooling towers, Counterflow design, Square Type, Modular Cell Configuration

KCC Closed circuit type cooling towers, Counterflow design, Square Type, Modular Cell Configuration


  1. The heat exchanger coil is made of high-quality copper alloy (C12200) for optimal heat exchange efficiency. The copper tubes are 5/8 inch in diameter, which is large enough to prevent clogging.
  2. The enclosed coils adopt a modular design, with each bundle weighing less than 40 kg, making them lightweight and easy to install and maintain.
  3. The fins are staggered, and the cooling water is first cooled by the fins and then by the closed coils, maintaining the best heat exchange efficiency. This reduces the number of coils and significantly reduces the total weight of the tower.
  4. The standard coil wall thickness is 0.5t, other thicknesses are optional.

Heating, ventilation, air conditioning, and light to medium-duty processing applications.
